Continuous pyrolysis plant convert plastic to fuel oil
With the development of the refining market and the maturity of the technology, continuous pyrolysis plant convert plastic to fuel oil increasingly welcomed by various countries because of its advantages of low capital investment and high fuel prices. The Doing Group's continuous pyrolysis plant convert plastic to fuel oil mainly includes pyrolysis reactor, condensing system, desulfurization tower and other purification systems. After a series of decolorization and deodorization processes, the quality of oil products will be greatly improved, and pyrolysis oil can be directly used in heavy industry boiler as fuel.

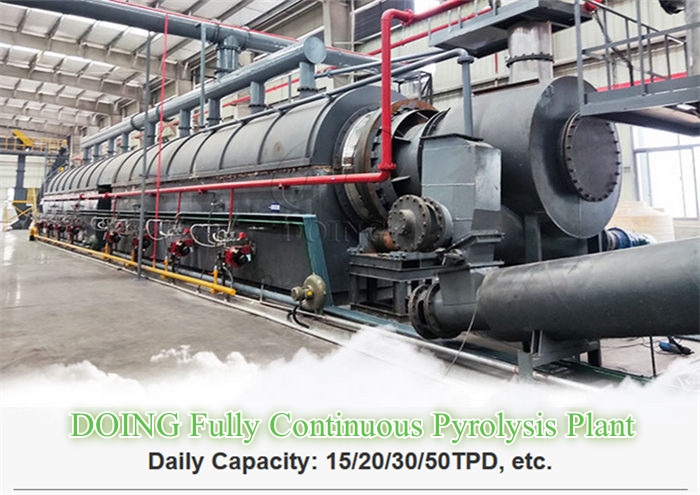

Continuous pyrolysis plant convert plastic to fuel oil
The workflow of continuous pyrolysis plant convert plastic to fuel oil is as follows:
1. Collect enough waste plastics;
2. The collected waste plastics were broken into small pieces of 2-3 cm by a plastic crusher.
3. Feed the plastics crumbs into the reactor through a sealed screw pusher and heat.
4. When the temperature reaches a certain level, oil and gas will be cracked.
5. Cracked oil gas entering the cold system will liquefy into heavy oil and fall into the oil tank.
6. The desulfurization and denitrification of the obtained heavy oil will eventually result in a combustible oil.
7. Cleavage process Charcoal black is discharged outside the furnace through a sealed screw conveyor.
Main workflow of continuous pyrolysis plant convert plastic to fuel oil
The main advantages of DoingGroup's continuous pyrolysis plant convert plastic to fuel oil
1. Mature manufacturing, installation and operation technology.
2. The reasonable layout of our pyrolysis system can reduce the floor space.
3. The pyrolysis plant is equipped with an automatic drying system for the pretreatment of waste plastics before pyrolysis.
4. Our reactor is rotary, which ensures a smooth heating of the reactor and saves energy and cost of fuel.
5. Our machine is equipped with an efficient tubular condensing system to increase oil production.
6. Our reactor is equipped with an insulating layer to extend the service life.
7. The entire system is completely sealed to prevent gas and odor leakage.
8. Combustible gases produced during the pyrolysis process can be recycled as fuel to the heated reactor, saving fuel costs.

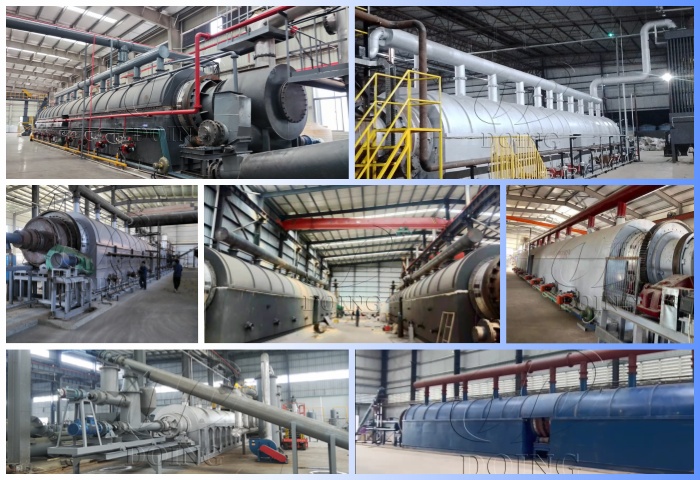

DOING continuous pyrolysis plant project cases
Selecting Doing Group, we are able to help our customers to make automatic and continuous pyrolysis plant project plans, including financial analysis. Completed the delivery, basic, installation, training, commissioning and commissioning of automatic and complete waste plastic pyrolysis devices. In addition, we have a one-year warranty.
Technical Data of continuous pyrolysis plant convert plastic to fuel oil
No. | Item | Specifications | |||||
1 | Model | DY-C-20 | DY-C-30 | DY-C-50 | DY-C-60 | DY-C-80 | DY-C-100 |
2 | Cpacity | 20T/D | 30T/D | 50T/D | 60T/D | 80T/D | 100T/D |
3 | Power | 50Kw | 65Kw | 80Kw | 90Kw | 105Kw | 120Kw |
4 | Working type | Continuous | |||||
5 | Reactor deisgn | Mutiple reactors (The quantity and size depends on the raw material condition) | |||||
6 | Rotating | Internal rotating | |||||
7 | Cooling system | Recycled waster cooling | |||||
8 | Reactor material | Q245R/Q345R boiler plate | |||||
9 | Heating method | Indireact hot air heating | |||||
10 | Heating fuel | Fuel oil/gas | |||||
11 | Feedstock | Waste tire/plastic/rubber | |||||
12 | Output | Fuel oil, carbon black |
Final Products of continuous pyrolysis plant convert plastic to fuel oil
There are mainly three kinds of products we can obtain from continuous plastic pyrolysis plant, that's plastic fuel oil, carbon black, syn-gas. They have different applications:
Products | Usages |
Pyrolysis oil | • Can be sold directly and used as an alternative fuel oil for cement/steel/brick/glass making factories, heavy oil power plant and other heavy industries. |
• Reprocessed into diesel for trucks, ships, tractors, diesel generators, and other heavy machinery after being refined by waste oil distillation machine. | |
• Can be used as fuel for iron factory, power plant, cement factory, restaurant, etc. | |
Carbon black | • Can be sold directly. |
• Reprocessed into high-quality carbon by the carbon black processing plant. | |
• Make carbon brick by briquetting equipment. | |
Combustible gas | • Can be used as fuel heating the pyrolysis reactor to save energy. |
Please feel free to leave your contacts here and your privacy is protected. A competitive quotation will be provided according to your detailed requirement within one business day.
-
