Used engine oil recycling machine
Used engine oil recycling machine
Waste oil refers to waste oil that has been replaced by various machines, vehicles and ships. Its production process is due to the fact that the lubricating oil during use is contaminated by external pollution, resulting in a large amount of colloidal oxides, thereby reducing or even losing control over friction, reducing wear, cooling and cooling, sealing and isolation, and reducing vibration and other effects that must be replaced. So how do you deal with these changed waste oils? In response to this social problem, DoingGroup has developed a used engine oil recycling machine that can obtain clean and transparent non-standard diesel oil through high-temperature distillation and condensation.

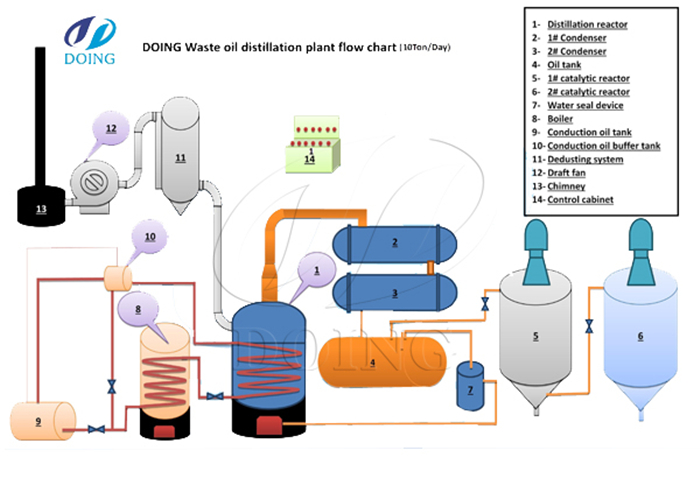

Used engine oil recycling machine working process
The main working flow of used engine oil recycling machine is:
1. Add waste oil to the reactor and start heating;
2. When the temperature rises to a certain extent, high-temperature distillation chemical reactions can be performed to separate the impurities from the waste oil.
3. Condensate the separated oil and gas, which will be liquefied into light oil and flow into the tank.
4. Automatically pump diesel to remove odor and color removal system;
5. Finally get high quality diesel.
Used engine oil recycling machine
1. The rapid heating system of the refining equipment adopts the heating of the circulating heating medium and the fuel at the same time, on the one hand, the fuel can be saved, and on the other hand, the distillation speed can be accelerated.
2. The diesel oil produced through the standard refining system is brownish yellow. If you want to get better color diesel, we can also provide a deep purification system, and finally you can get pale yellow diesel products.
Technical parameter of used engine oil recycling machine | |
Items | Contents |
Model | DY-5t, DY-10t, DY-20t, DY-50t… |
Raw material | motor oil, waste tire crude oil, plastic crude oil |
Structure form | Vertical (easy cleaning and maintenance) |
Heating method | Indirect heating to prolong the machine service life |
Operating pressure | Constant pressure |
Heating material | Coal, charcoal, fuel gas, fuel oil |
Average out-put oil rate | 95% |
Material of reactor | 4 reactor with different material |
Thickness of reactor | 18mm |
Mode of cooling | Recycled water cooling |
Power in total | 20 Kw |
Service life | average 7 years |
Land area | 180㎡ |
The main products of used engine oil recycling machine are diesel and asphalt. Among them, the oil production is about 85%, and the rest includes 10% of bitumen and 5% of excess gas. Excess gas will be recycled to the furnace as an auxiliary heating fuel. Their main uses are as follows:

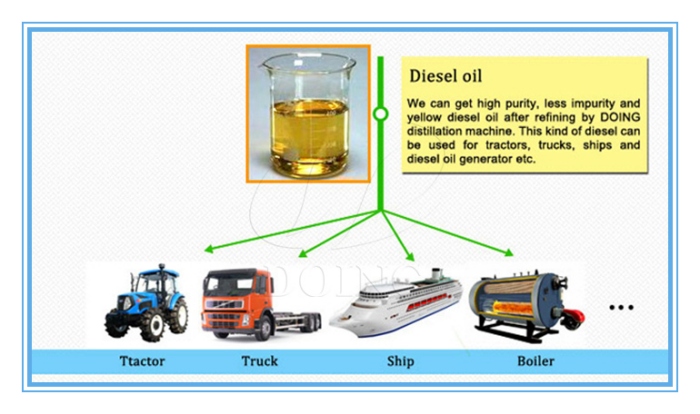

Diesel oil usage
1. Diesel oil: Mainly used for heavy machinery, generators, boilers.
2. Asphalt: Mainly used for paving or sent to asphalt plants for re-refining.
