waste oil to diesel

Plastic pyrolysis oil to diesel distillation plant

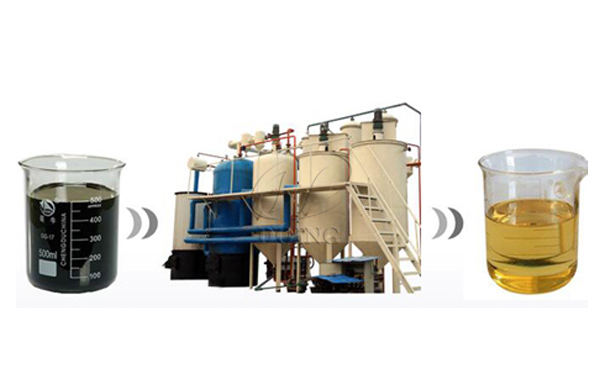

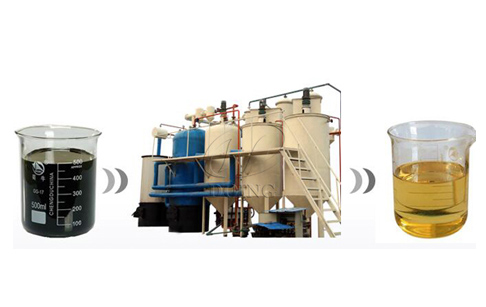

The plastic pyrolysis oil can be extracted into diesel oil by the plastic pyrolysis oil to diesel distillation plant. And the operation process of plastic pyrolysis oil to diesel distillation plant is simple and pollution-free.

pyrolysis oil distillation plantThe plastic pyrolysis oil can be extracted into diesel oil

Plastic pyrolysis oil is a kind of fuel oil obtained by cracking waste plastics in a plastic pyrolysis plant. The plastic pyrolysis oil to diesel distillation plant produced by DOING company by distillation technology can extract plastic pyrolysis oil into diesel oil, so that the plastic pyrolysis oil can achieve higher use value.

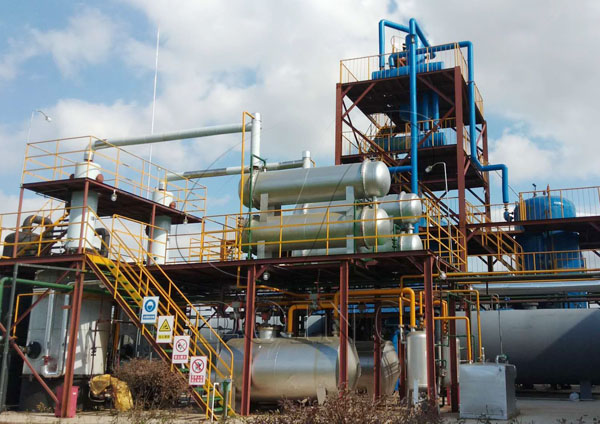

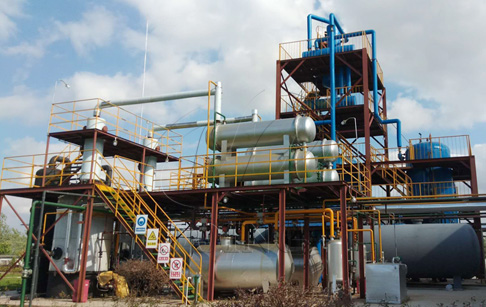

plastic oil distillation plantPlastic pyrolysis oil to diesel distillation plant

With the social progress and economic development, the energy crisis has become a more and more serious trend. Plastic pyrolysis oil to diesel distillation plant can extract diesel oil from plastic pyrolysis oil to a certain extent alleviate the oil energy crisis.

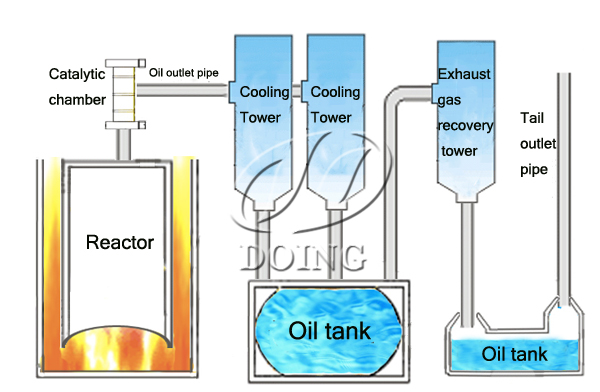

The main working process of plastic pyrolysis oil to diesel distillation plant is as follows:

1. Put the plastic pyrolysis oil into the reactor of plastic pyrolysis oil to diesel distillation plant;

2.Heating the distillation reactor, the plastic pyrolysis oil distills out oil gas at high temperature, and the remaining is the residue of heavy oil;

3. Oil gas are collected to the storage tank after condensation;

4. Purify and decolorize the collected oil in the storage tank to obtain clean and transparent diesel oil.

plastic pyrolysis oil to diesel distillation plantThe main working process of plastic pyrolysis oil to diesel distillation plant

As can be seen from the main process above, the operation of plastic pyrolysis oil to diesel distillation plant is relatively simple, and there will be no secondary pollution in the process of processing plastic pyrolysis oil.

Technical parameter of plastic pyrolysis oil to diesel distillation plant:

No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about plastic pyrolysis oil to diesel distillation plant with good oil prices
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m


The main products of plastic pyrolysis oil to diesel distillation plant are diesel oil and asphalt.

The specific application of diesel oil and asphalt are as follows:

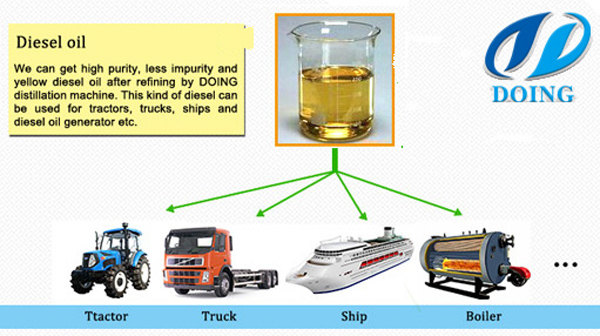

1. Diesel oil: mainly used in heavy machinery, generators, boilers and agricultural machinery;

plastic oil distillation plantApplication of diesel oil

2. Asphalt: asphalt from plastic pyrolysis oil to diesel distillation plant can be used for direct paving or refining into better asphalt for reuse.

Plastic pyrolysis oil to diesel distillation plant has a wide range of USES. It can not only deal with plastic pyrolysis oil, but also can deal with waste engine oil, tyre pyrolysis oil and so on.

Waste plastic, waste tyres and waste engine oil are all wastes, and the diesel oil extracted from waste tyres oil, waste plastic pyrolysis oil and waste engine oil is of high economic value and use value, so it will be very profitable to refining tyre pyrolysis oil, plastic pyrolysis oil and waste engine oil by plastic pyrolysis oil to diesel distillation plant.
