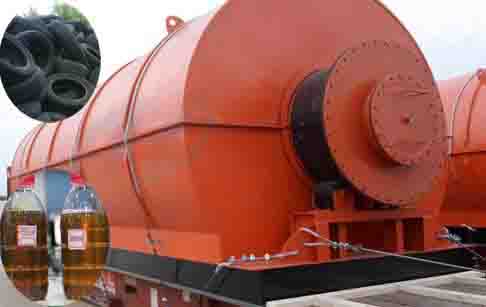

Waste tyre to oil recycling process pyrolysis plant

Waste tyres to waste oil pyrolysis plant feature:

Waste tyre to oil recycling process pyrolysis plant
Waste tyre to oil recycling process pyrolysis plant working process

Waste tyre to oil recycling process pyrolysis plant working process
First, the raw materials are put into the reactor and seal the doors in the reacto
Second, start the machine and reactor will rotating and be heated. When the inside
temperature reaches the degree of 250 to 280, the oil gas will begin to generate while flow through oil gas separator, and continuously produce until the temperature up to the degree of 350 to 460.
Third, in oil gas separator, light component will enter the condensers, meanwhile,
heavy component will be liquefied and then automatically discharged into heavy oil tank
Forth, most of the light component will be liquefied through condensers to crude oil.
Small amount of oil gas cannot be liquefied and will be transferred by water seal tank back to the burning.After all these steps, you can start another batch.
Waste tyre to oil recycling process pyrolysis plant feature
1.Generates quality fuel with lower emission
2.Controls plastic land pollution
3.Recover energy from waste
4.Helps recycle carbon
Waste tyre to oil recycling process pyrolysis plant technical data:
Technical parameter of waste tyre to oil recycling process pyrolysis plant | ||||
No. | Items | Contents | ||
1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
2 | Raw material | Waste tyres | Waste tyres | Waste tyres |
3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
6 | Operating pressure | Normal | Normal | Normal |
7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
10 | Total power | 19KW | 19KW | 19KW |
11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
17 | Delivery time | 20days | 20days | 20days |
18 | Weight | 27T | 30T | 35T |
Prepared by customer about waste tyre to oil recycling process pyrolysis plant | |||
No. | Item | Consumption | |
1 | Coal(for choice) | 500kg/day | |
2 | Wood(for choice) | 800kg/day | |
3 | Natural gas(for choice) | 100-150kg/day | |
4 | Oil(for choice) | 300-350kg/day | |
5 | Electricity | 244kwh/day | |
6 | Water(recycled) | 60㎥ /month | |
7 | Total power | 19kw | |
8 | Land area | 35m*15m |
Waste tyre to oil recycling process pyrolysis plant final product application

Fuel oil application
Fuel oil from waste tyre are used in below industries:
A.Power plant factory
B.Glass factory
C.Cement factory
D.Ceramic fatory
E.Aluminum factory
F.Boiler factory
G.Central heating factory
H.Painting factory
