Small capacity 500kg Converting waste motor oil to diesel fuel plant

Date:2021-01-20/ Waste Oil to Diesel Plant/ Chat online/ Give me a price

Factory direct sale contact number

Chat Online

Leave a Message

Features
Technical Data
Application

Due to unstable crude oil prices, high fuel costs, and the retention of high energy potential in the waste motor oil, DoingGroup's technology of converting waste motor oil into diesel fuel plant is now very mature. This diesel fuel from converting waste motor oil into diesel fuel plant can replace crude oil, and realize resource recovery. The converting waste motor oil into diesel fuel plant has become increasingly popular, not only because of its simplicity of operation, but also because of its product has great uses. Especially small capacity 500kg converting waste motor oil to diesel fuel plant is welcomed by customers.

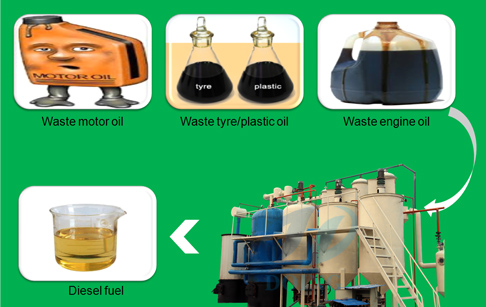

waste oil to diesel plant Small capacity 500kg converting waste motor oil to diesel fuel plant

The specific operation flow of converting waste motor oil to diesel fuel plant is as follows:

1. The waste motor oil is poured into the reactor and the susceptor is heated. The waste motor oil is distilled at the temperature of 520-650°F.

2. The oil gas generated after the distillation of the waste motor oil will enter the condensing system under the action of high and low pressure, and will liquefy into light oil when it is cooled down and falls into the oil tank.

3. The obtained light oil is subjected to desulfurization and degreasing treatment, odorless and tasteless clean and transparent non-standard diesel oil is obtained.

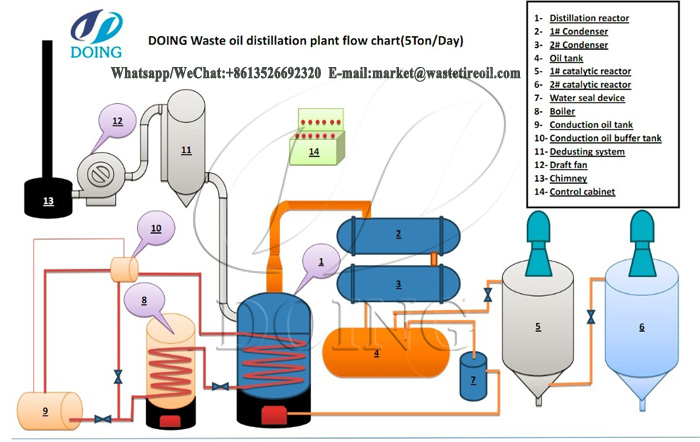

The specific operation flow of converting waste motor oil to diesel fuel plant

The DoingGroup's small capacity 500kg converting waste motor oil into diesel plant also has two option systems:

Rapid heating system

The rapid heating system of converting waste motor oil into diesel plant uses the circulating heating medium and the fuel to heat at the same time, on the one hand, it can save energy, and on the other hand it can speed up the distillation speed.

Diesel purification system

The diesel fuel refined from the standard refining system is brownish yellow. If you want to get better color diesel, we can also provide a deep purification system, and finally you can get the light yellow diesel product.

The small capacity 500kg converting waste motor oil into diesel plant produced by DOING company is a complete set of equipment, easy to install and operate.This is a great opportunity for customers who want to try to refine waste oil to diesel.

Technical parameter of Converting waste motor oil to diesel fuel plant

Technical parameter of Converting waste motor oil to diesel fuel plant
Items	Contents
Model	DY-500kg, DY-5t, DY-10t, DY-20t, DY-50t…
Raw material	motor oil, waste tire crude oil, plastic crude oil
Structure form	Vertical (easy cleaning and maintenance)
Heating method	Indirect heating to prolong the machine service life
Operating pressure	Constant pressure
Heating material	Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate	95%
Material of reactor	4 reactor with different material
Thickness of reactor	18mm
Mode of cooling	Recycled water cooling
Power in total	20 Kw
Service life	average 7 years
Land area	180㎡

Uses of diesel fuel from small capacity 500kg converting waste motor oil to diesel fuel plant

Uses of diesel fuel from converting waste motor oil to diesel fuel plant

The diesel fuel from small capacity 500kg converting waste motor oil to diesel fuel plant can be used in heavy machinery, generator, ship and boiler. This diesel fule is relatively cheap and can relieve the pressure of crude oil shortage in some areas.

If you want to start a better waste motor oil recycling to diesel business, you can also buy DOING company's large capacity converting waste motor oil to diesel fuel plant. For more information, leave a message on our website.
