Scrap PCB board recycling plant

Scrap PCB board recycling plant
scrap pcb board recycling plant
Scrap PCB board recycling plant

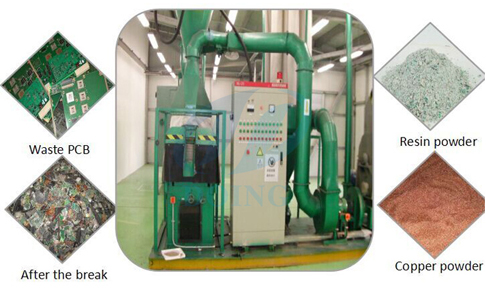

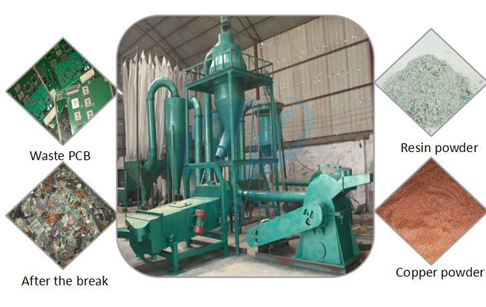

The scrap PCB board recycling plant can be used for recycling all kinds of circuit boards, computer board, TV board, aluminum-plastic plate, copper board, printed circuit boards etc. the metal recovery rate is 99%.
Our Scrap PCB board recycling plant working principle is: Two times mechanical pulverization makes PCB into the mixtures of metal and nonmetal powder. Through the air separation technology, realizing the metal and nonmetal complete separation and collection. The whole process can be realized in one production line, fully closed operation ensures not creating any pollution.

Scrap PCB board recycling plant technical data
Item Model Capacity(kg/h) Power(Kw) Size (m)(L*W*H) Weight(T) Remark
1 DY-500 100-200 19.8 3.2×1.5×2.8 1.8 Doubling crushing, separation and dedusting system
2 DY-600 300-500 88.2 4.5×1.7×3.5 3.0 Doubling crushing, separation and dedusting system
3 DY-800 600-800 142.2 5.5×2.5×3.5 7.7 Doubling crushing, separation and dedusting system

Scrap PCB board recycling plant
scrap pcb board recycling plant
Application of scrap pcb board recycling plant

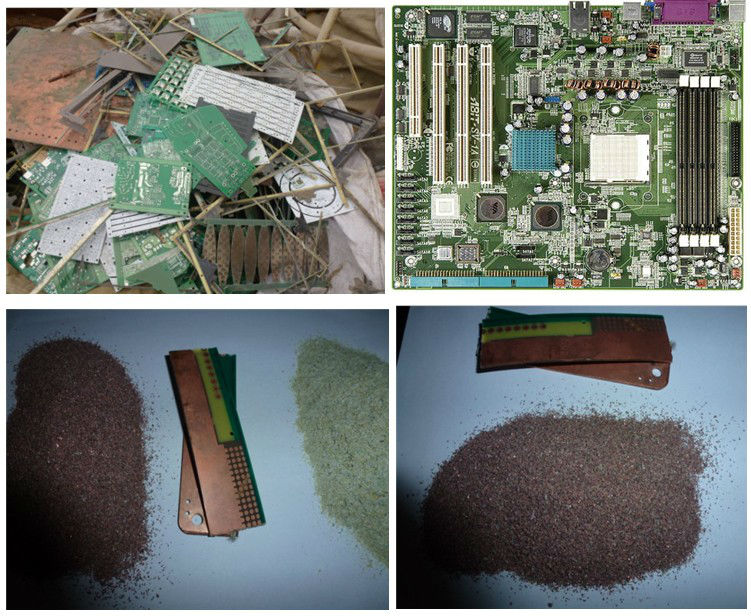

Scrap PCB board recycling plant is apply to processing all kinds of waste circuit boards from all kinds of electric appliances, such as computers, TV, air conditioners, refrigerators, etc.
