Used tire/plastic to oil processing plant

Tyre cutting machine

Used tire/plastic to oil processing plant is an innovative technology used to recycle millions of used tires/plastic into valuable by-products, including fuel oil, carbon black, steel, and tail gas. These by-products can be sold at a substantial profit with a good reputation in India about plastic waste management.

Chat Online Leave A Message
used plastic to oil preocessing plant
Used tire/plastic to oil processing plant

1. Unique design of reactor guarantees the service life and safety.
2. No need to crush tires. We can feed whole tires into the reactor. Save manpower and increase efficiency.
3. Electric cabinet help you watch the temperature and easy to control power.
4. Technical condensers and circulating water guarantee the cooling effect and improve oil yield.
5. The residual gas (tail gas) recycles to furnace as fuel. Save energy.
6. Flue gas is processed by dust removal device. Reach the emission standard.
7. Experienced engineers will help you install the machine and train your workers.
Used tire/plastic to oil processing plant has two important parts, reactor and condensers.

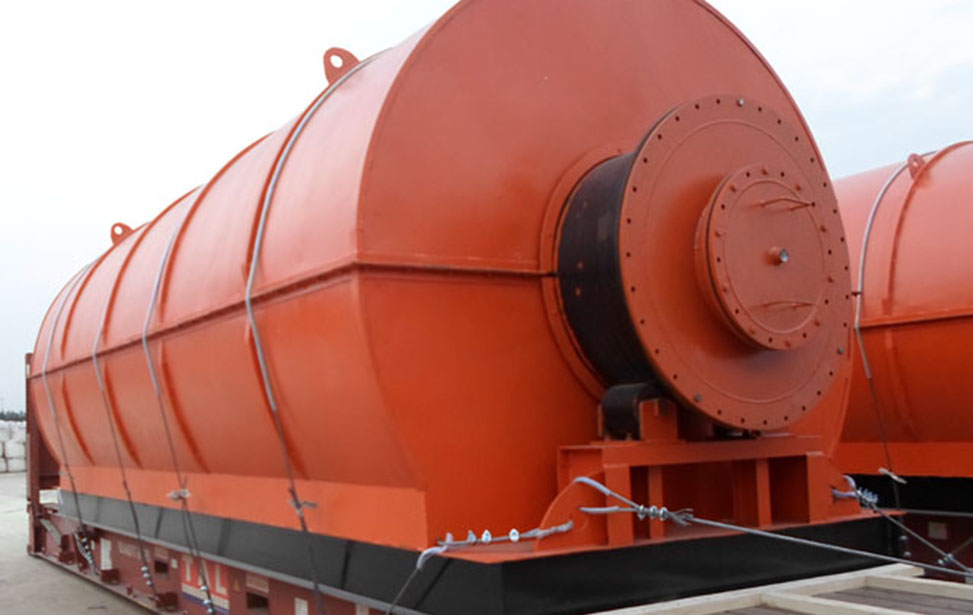

The reactor decides the whole machine’s service life. In the refining industry, when heating the reactor by fuel, the heating temperature can be up to 450—500 degree centigrade inside the reactor. Our 5th generation machines use the Q245R boiler steel plate as material, it stresses on the high temperature and high pressure resistant, and its melting point can reach to 800 degree centigrade, which can assure 6-8 year’s lives and it conform to the national standard.
Meanwhile, all machine parts are welded with auto-welding machine, pressure parts will be 100% X-ray detection, heat treatment and hydra press measurement, safety assurance.

Technical parameter of used tire/plastic to oil processing plant
  No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste tire/plastic Waste tire/plastic Waste tire/plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about used tire/plastic to oil processing plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m
plastic oil application ,tyre oil application
Fuel oil from waste tyre and plastic can be used for above factories

Used tire/plastic to oil processing machine technology unlocks the significant value of millions of used tires which require a massive amount of storage space, removing an environmental eye sore, and enabling the land to be used for higher value purposes with to dealing with waste plastic and waste tyres.
