Used Motor Oil to Diesel Processor
♦ Used motor oil to diesel processor introduction
Used motor oil to diesel processor manufactured by the principle of distillation can extract diesel oil from used motor oil. The diesel oil extracted from used motor oil is very close to that of standard diesel oil and can be used in heavy machinery, generators, boilers, etc. This method of processing used motor oil by used motor oil to diesel processor not only can bring great profits to customers, but also does not pollute the environment. In some countries, used motor oil to diesel processor also named waste oil distillation machine, distillation equipment. It' names are different, but have the same functions.

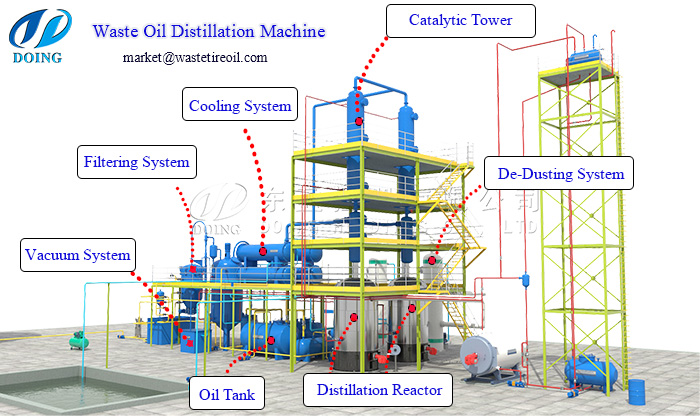

♦ Main components of used motor oil to diesel processor
DOING's used motor oil to diesel processor is mainly composed of reactor, cooling system, vacuum system, filtering system and de-dusting system. Our used motor oil to diesel processor can refine used motor into diesel oil very efficiently, and at the moment it is the most energy-saving refinery equipment in the market. Now, we have 5t-20t per day used motor oil to diesel processor which can meet different customers' requirements.
Main components of used motor oil to diesel processor

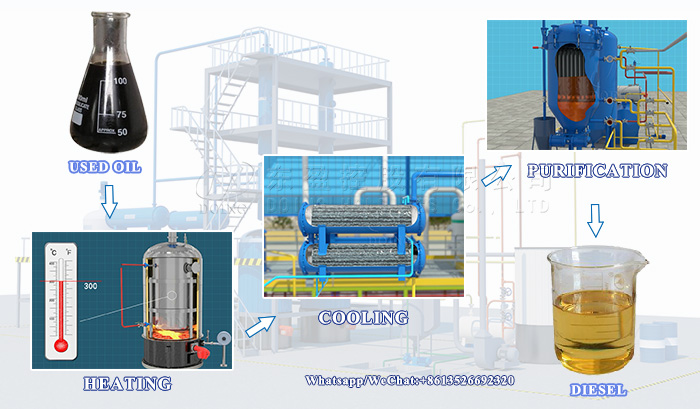

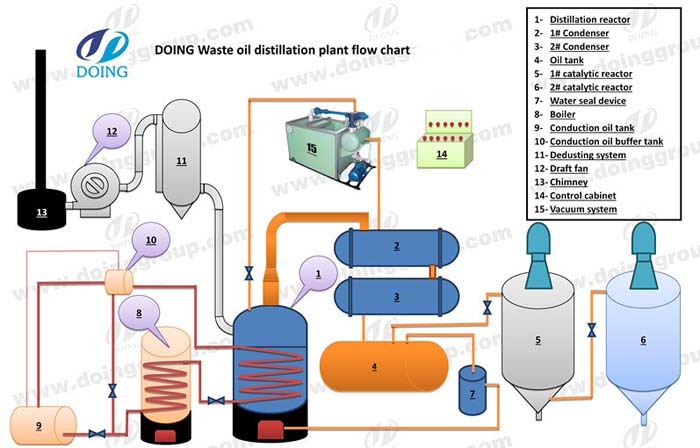

♦ The main working process of used motor oil to diesel processor
1. Put used motor oil into distillation reactor with oil pump
2. Heat the distillation reactor, and the oil gas will be produced as the temperature rises.
3. Cool oil gas down to pure distillation oil by condensers.
4. Remove the bad smell of distillation oil.
5. Then oil go into color-removal tank for de-coloring with the special catalysts.
6. Finally, you can get about 85% pure diesel oil.
The main working process of used motor oil to diesel processor

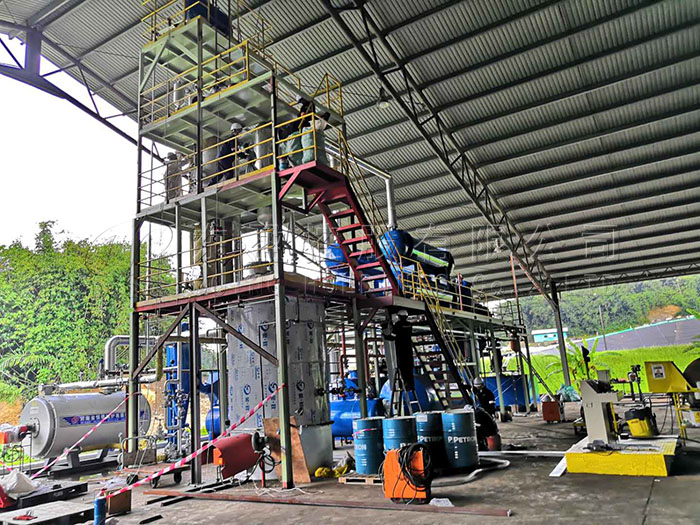

At present, used motor oil to diesel processor has been well received by customers all over the world. Below is the installation picture of our customer's used motor oil to diesel processor in Malaysia.
Used motor oil to diesel processor installed in Malaysia
♦ The parameter of oil yield of used motor oil to diesel processor with different raw materials
Oil yield of used motor oil to diesel processor with different raw materials | ||
No. | Name | Oil recovery rate |
1 | Waste tire oil | 85%-90% |
2 | Waste plastic oil | 95% |
3 | Waste engine oil | 85%-90% |
The raw materials of used motor oil to diesel processor can be waste tyre oil, waste plastic oil, waste engine oil, crude oil, used motor oil, lube oil etc. Different raw materials have different oil yield.
♦ The special advantages of used motor oil to diesel processor
1. After more than 10 years’ research and development, our distillation technology is already mature.
2. Used motor oil to diesel processor can refine 3 kinds of oil--waste tire oil, plastic oil and used motor oil.
3. The final diesel oil can be directly used in diesel oil generator, trucks and vans, etc.

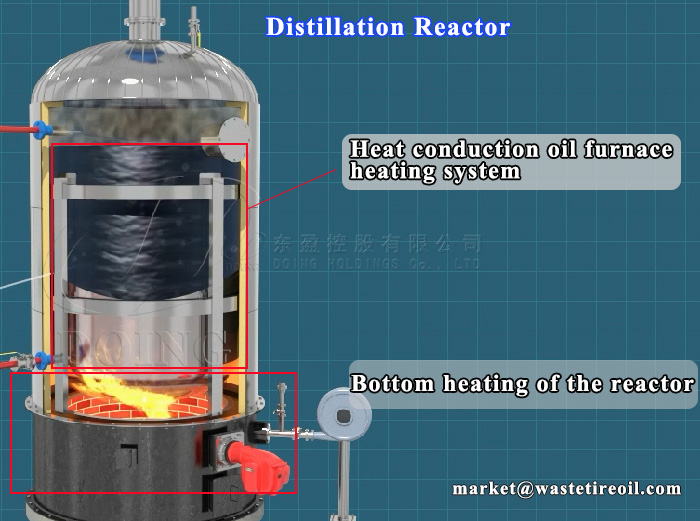

4. Indirect heating by boiler heating system can greatly increase the service life of our used motor oil to diesel processor.
5. Three steps purifying process ensure final diesel pure and high quality.
Indirect heating by boiler heating system
♦ Technical parameter of used motor oil to diesel processor
Items | Contents |
Model | DY-5T, DY-10T, DY-15T, DY-20T… |
Raw material | used motor oil,waste engine oil, waste tire crude oil, plastic crude oil |
Structure form | Vertical (easy cleaning and maintenance) |
Heating method | Indirect heating to prolong the machine service life |
Operating pressure | Constant pressure |
Heating material | Coal, charcoal, fuel gas, fuel oil |
Average out-put oil rate | 85% |
Material of reactor | 4 reactor with different material |
Thickness of reactor | 18mm |
Mode of cooling | Recycled water cooling |
Power in total | 9kw |
Service life | average 7 years |
Land area | 180㎡ |

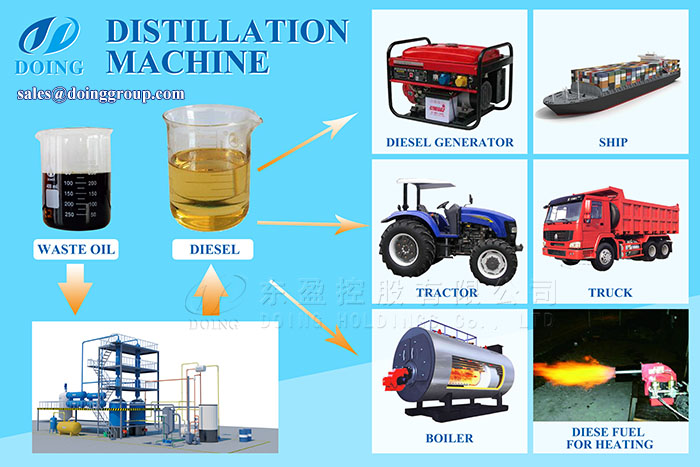

♦ Application of final product
The diesel oil from used motor oil to diesel processor are clean and golden color, generally no need further treatment, they are going to be blended with additives to get finished oils for the automotive and industrial applications, such as tractors, trucks, ships and diesel oil generators, etc.
Application of diesel
If you are interested in our used motor oil to diesel processor, please feel free to contact us and we will reply to you within 24 hours.
Please feel free to leave your contacts here and your privacy is protected. A competitive quotation will be provided according to your detailed requirement within one business day.
-
