Glass crusher

Grinding machine

Glass crusher are designed to grinding the stones whose Moh's hardness below 9.3 and moisture below 6% of all kinds of inflammable and explosive mineral materials processing such as limestone, calcite, dolomite, barite, gypsum, talc, calcium carbonate,bentonite and so on.Its final product size is 1.6 mm to 0.038 mm,which is very fine. Glass crusher is the ideal powder making equipment in electric power industry, metallurgy industry, chemical industry, building construction, coal industry, fireproofing materials making industry and some others.

Chat Online Leave A Message

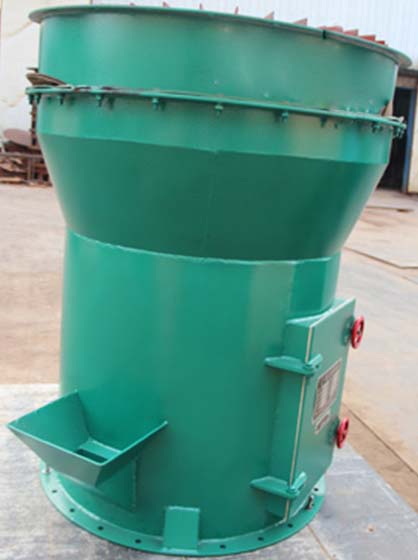

glass crusher
glass crusher


1. The glass crusher  is made of high manganese steel which is more durable and the blade can replace easily.
2. Cone gear whole transmission-compact conformation, convenient installation, reducing dissipation of energy.
3. Isolation type cyclone powder collector. Effectively improve the efficiency and precision of choosing powder.
4. The observe door and air inlet volute is in the same surface,voiding the eddy current effect and reducing energy consumption.
5. Optimization design for grinding roller grinding ring of main-spring pressurization, high-wearing feature.
6. Internal thin oil lubrication system. Advanced and reliable, prolong service life.
7. Curved duct. Loss of the air volume is small, the liquidity of material is good and not easy plugging material.

Model

Grinding Roller

Grinding Ring

Feeding
Size
(mm)

Output size (mm)

Capacity
(t/h)

Motor
Power
(kw)

Overall
Dimension
(mm)

Numbers
(pcs)

Diameter
(mm)

Height
(mm)

Outside
Diameter
(mm)

Height
(mm)

3R1410

3

140

100

495

100

<8

0.613-0.044

0.15-1.2

14.1

3340*2200*3200

3R2115

3

210

150

726

150

<15

0.613-0.044

0.28-1.8

28.2

4480*3100*3970

3R2615

3

260

150

865

150

<15

0.613-0.044

0.35-2.8

35.7

5000*4100*4850

3R2715

3

270

150

884

150

<15

0.613-0.044

0.40-3.4

42.7

5050*4150*4900

3R3015

3

300

150

965

150

<15

0.613-0.044

0.45-3.7

55

5200*4200*4950

4R3016

4

300

160

990

160

<20

0.613-0.044

0.6-4.5

55

5250*5000*5500

4R3216

4

320

160

1073

160

<25

0.613-0.044

1.0-5.2

72.5

7700*7200*8800

5R4119

5

410

190

1400

190

<30

0.613-0.044

2.0-9.0

157.5

7900*8800*9650

glass crusher
glass crusher sample


Glass crusher are designed to grinding the stones whose Moh's hardness below 9.3 and moisture below 6% of all kinds of inflammable and explosive mineral materials processing such as limestone, calcite, dolomite, barite, gypsum, talc, calcium carbonate,bentonite and so on.Its final product size is 1.6 mm to 0.038 mm,which is very fine. Glass crusher is the ideal powder making equipment in electric power industry, metallurgy industry, chemical industry, building construction, coal industry, fireproofing materials making industry and some others.
