Discount scrap waste tyres to oil pyrolysis machine

Congratulations, you have found a profitable business opportunity when you view this page, and also you have got a fine supplier who can support you on this field.

    Waste tire/plastic/rubber becoming more and more serious,Many governments of the countries are trying to deal with this thorny problem.

    How to deal with this problem? We have found a way,please read on...

Traditional processing method is burning or landfill.But there is serious pollution to air and soil,it was not right way.

    Pyrolysis, not only averts the serious pollution but also has profit.

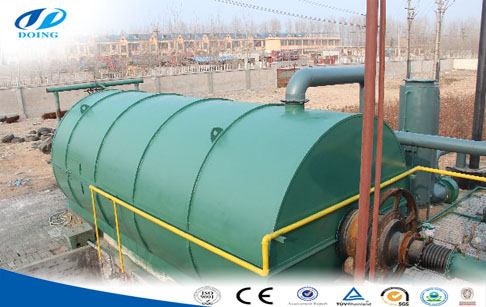

discount scrap waste tyres to oil pyrolysis plant

Discount scrap waste tyres to oil pyrolysis machine

The principle introduction of discount scrap waste tyres to oil pyrolysis machine:

Pyrolysis is thermochemical decomposition of tyre and plastic polymer, since waste tyre and plastic are long chain polymers containing more than 50,000 carbon atoms. The process will require an initial fuel source of coal, wood or oil. Oil gas produced flows through several successive condensers where the gas is cooled and oil gas is condensed into oil.

1.working process:

Working process of the discount scrap waste tyres to oil pyrolysis machine

Firstly, the raw material is put into furnace,then seal the feed inlet system.secondly,burned the fuel material(coal, or wood,or natural gas, oil ) in the combustion system. The reactor will slowly heat, when the temperature reach around 250 degree celsius, it will produce oil gas .oil gas will be processed by our technology ,then gone to cooling system to cold liquid oil.the gas which can not be liquid under normal pressure, which will be desinged to back to combustion system to instead the fuel material to burn the reactor .which can save energy very much.
after finished oil produce, the temperation of reacor will be down, in same time, carbon black will be discharged automatically.
Lastly, when the temperature fall to 100 degree celsius,worker could opened the door of reactor to discharge of steel wire, then can start to another batch working.
Advantage of Doing Company:

1.Our belief: Doing is better than thousands of ideas.Our success comes from do it immediately.

2.Rich experience: equipment had exported to more than 18 countries.

3.With ISO9001:2008, CE Certificate.

4.Strict requirements for quality:

    IQC:Incoming quality control,main raw material;

    PQC:Process quality control,All the reactor is inspection by X-ray.

5.Running machine available for customer visit.

6.Factory area : 20000 square meter.

7.Production capacity:20 sets/month.

    Xinxiang Doing Renewable Energy Equipment Co., Ltd specializes in manufacturing waste tires pyrolysis/recycling equipment. We have mature technology and professional sales team. And we have exported more than 50 sets of equipments to many countries and areas in 2011, such as Turkey, Albania, Macedonia, Iran, Ecuador, Poland, India, Malaysia, Bangladesh and so on.

After-Sales of discount scrap waste tyres to oil pyrolysis machine to Get 4.5ton Crude Oil from 10ton Tyre BRAND DOING MACHINE

1. Delivery time- It will be 10-15 days after we receive the deposit.

2. Warranty- The warranty period for reactor and other parts except spare parts is 1 year.

The problem caused by wrong operation of workers shall not be responsible by our company.

3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation,

testing the machine and training your workers.

During the installation period, buyer should pays $50.00 pry day to our technician;

And buyer should take charge of technician round trip air tickets and accommodation during

installation.

Technical parameter of discount scrap waste tyres to oil pyrolysis machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste plastic	Waste plastic	Waste plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by discount scrap waste tyres to oil pyrolysis machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

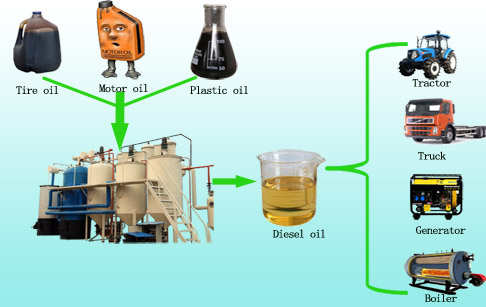

The usage of final production-----FUEL OIL

fuel oil from waste tyre are used in below industries

A.power plant factory

B.glass factory

C.cement factory

D.ceramic fatory

E.aluminum factory

F.boiler factory

G.central heating factory

H.painting factory

production-----CARBON BLACK

carbon black from waste tyre are used in below industries

A.electric cable jacketing

B.conveyor ban

C.hose and doormat

D.black nylon bag

E.rubber additive

F.automatic spare parts

G.heat isolation

H.black colorant in rubber materials

I.plastic pipes

J.industries rubber products

K.fire fighting

steel wire from waste tyre can be re-sale to steel factory
